BRAND NEW

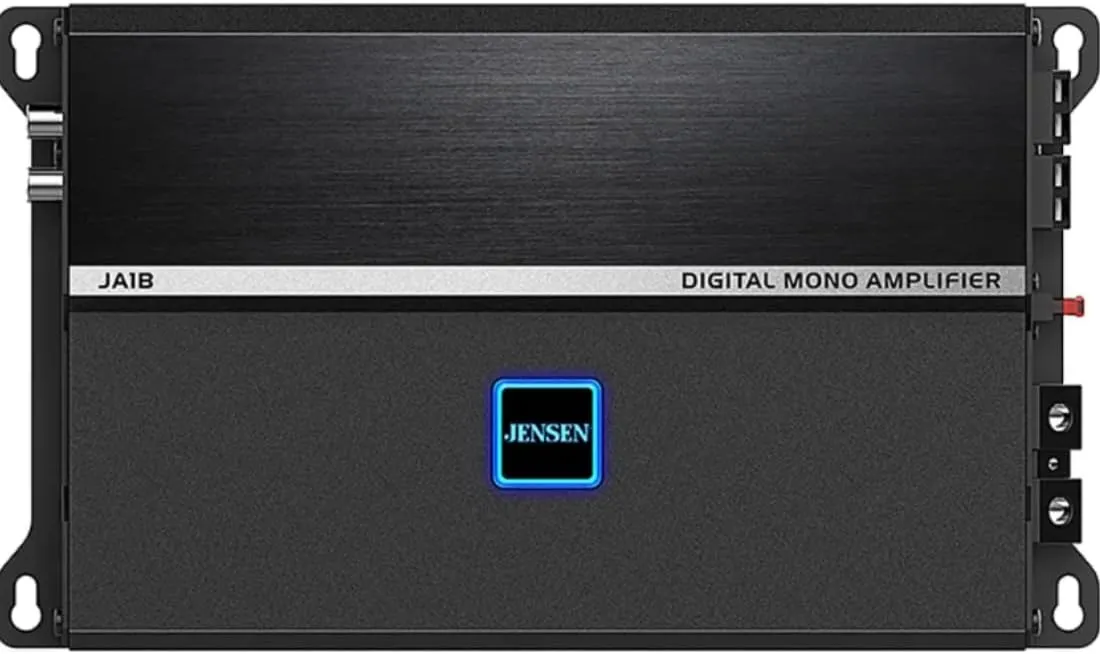

JENSEN JA1B

290 Watts RMS Monoblock Class-D Compact Amplifier with DSP

Key Features:

• Jensen DSP AMP App (Apple/Android)
• RGB Custom Color Illumination
• Class D Design
• High Level (Speaker Wire) Input
• Low Level (RCA) Inputs
• Dimensions: 2.16″ X 9.56″ X 5.59″ (HXWXD)
• Adjustable Bass Boost At 45 HZ
• CTA-2006-D Certified

Specifications:

• Speaker Outputs: Mono
• Class: D Digital
• Speaker inputs: High level (Speaker Wire), Low Level (RCA)
• Illumination: RGB
• App control: Yes
• Crossover: Adjustable low-pass crossover (32 Hz – 300 Hz)
• Frequency response: 20 Hz – 300 Hz
• Signal-to-noise ratio: 68 dBA
• Total dynamic power: 690 Watts
• Outputs: RCA Pass Through
• Gain Adjustment: Variable 200 mV ~ 6 V
• Adjustable Bass Boost: 45 Hz
• Power Supply: PWM MOSFET
• Fuse Size and Type: 25A x 2
• Dimensions: 2.16″ X 9.56″ X 5.59″ (HXWXD)
• Recommended Power/Ground Wire: 4-8 AWG
• Recommended Speaker Wire: 12 – 16 AWG

• Product Dimensions ‏ : ‎ 12 x 8 x 4 inches; 4.22 Pounds
• Date First Available ‏ : ‎ April 20, 2023
• Manufacturer ‏ : ‎ Jensen
