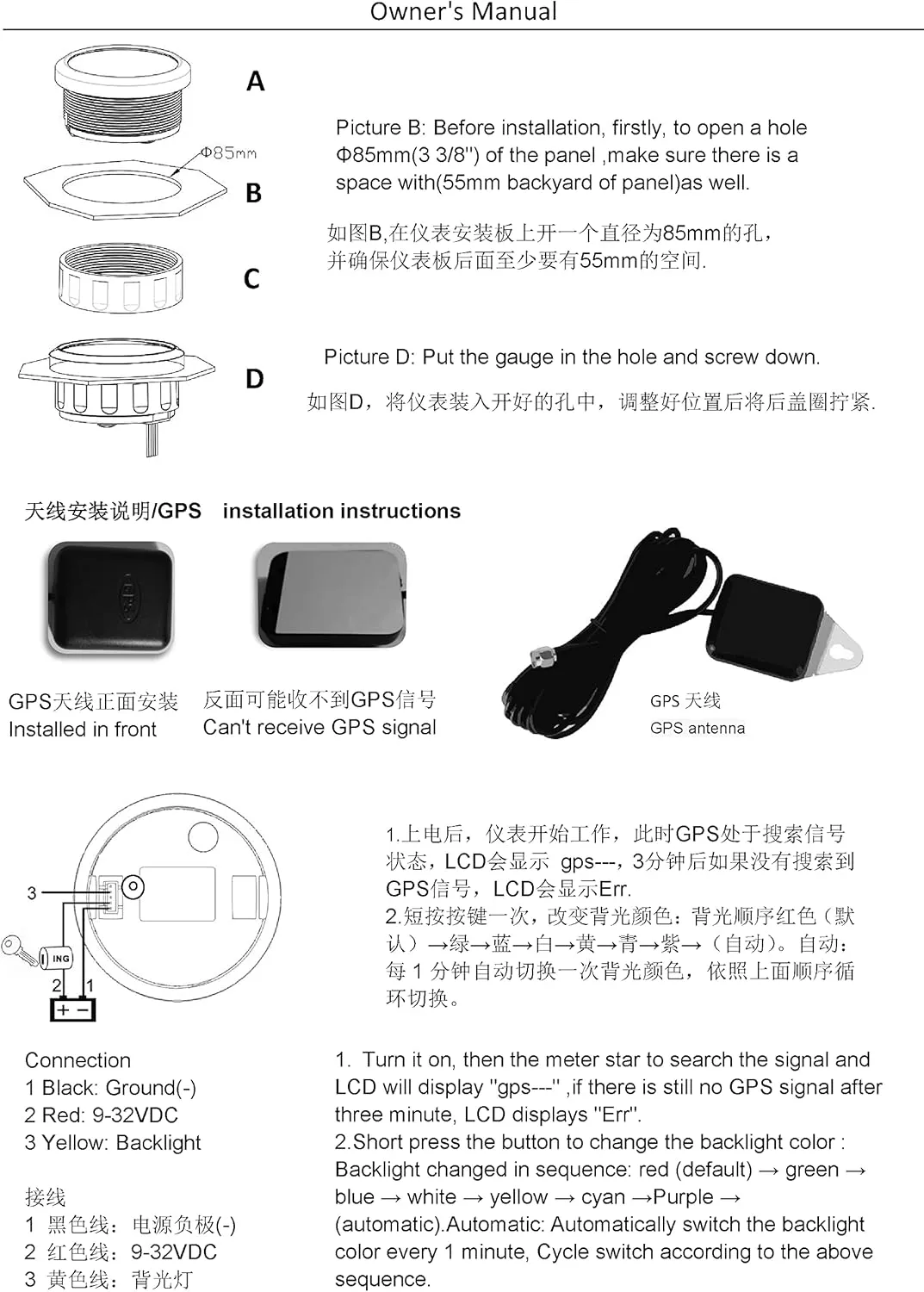

- Cut an 85mm (3 3/8") hole in the panel and allow a clearance of 55mm behind the panel to fit the gauge. Put the gauge in the hole and screw down.

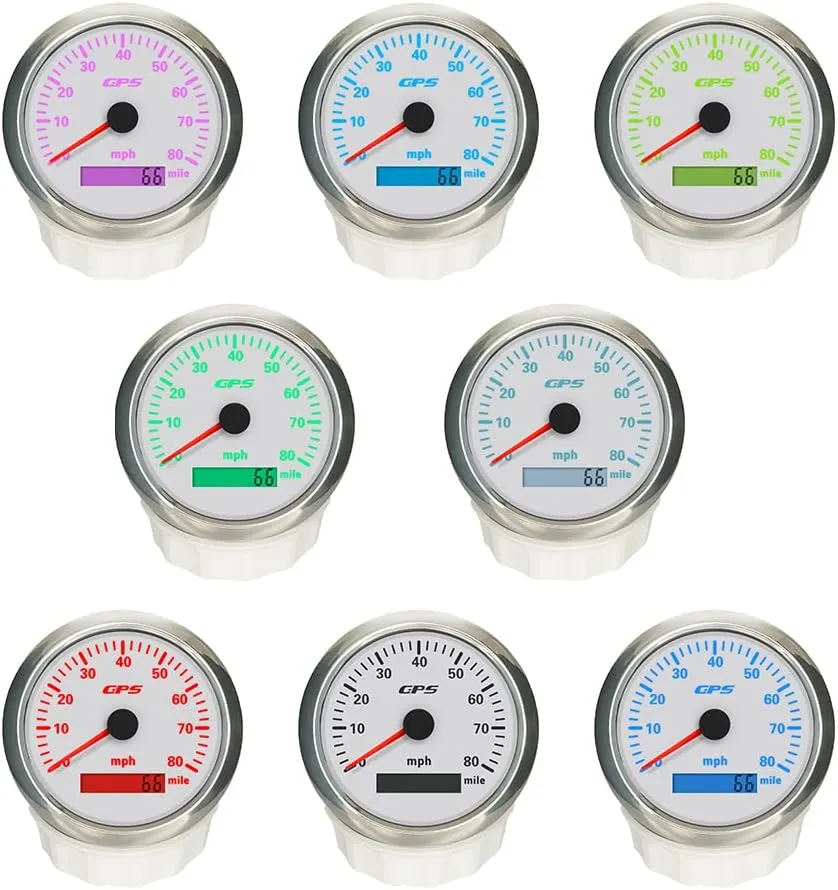

- 7 Backlights available (red, green, blue, white, yellow, cyan, purple)
- Securely fasten the GPS antenna, preferably outdoors (or inside front windscreen) so that it has a clear view of the sky to pick up satellite signal. Connect the antenna cable to socket in the back of the gauge. Do not cut cable.

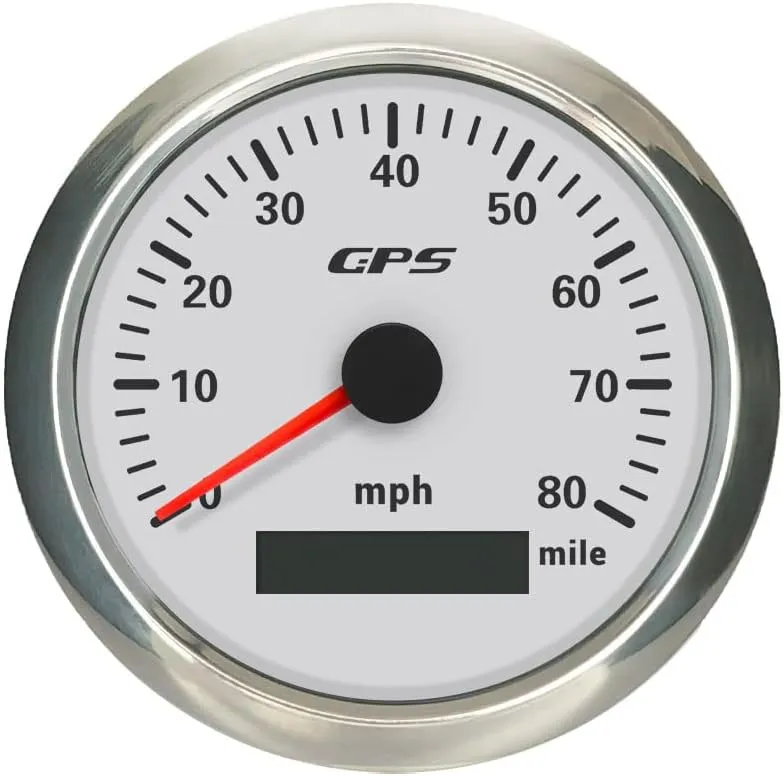

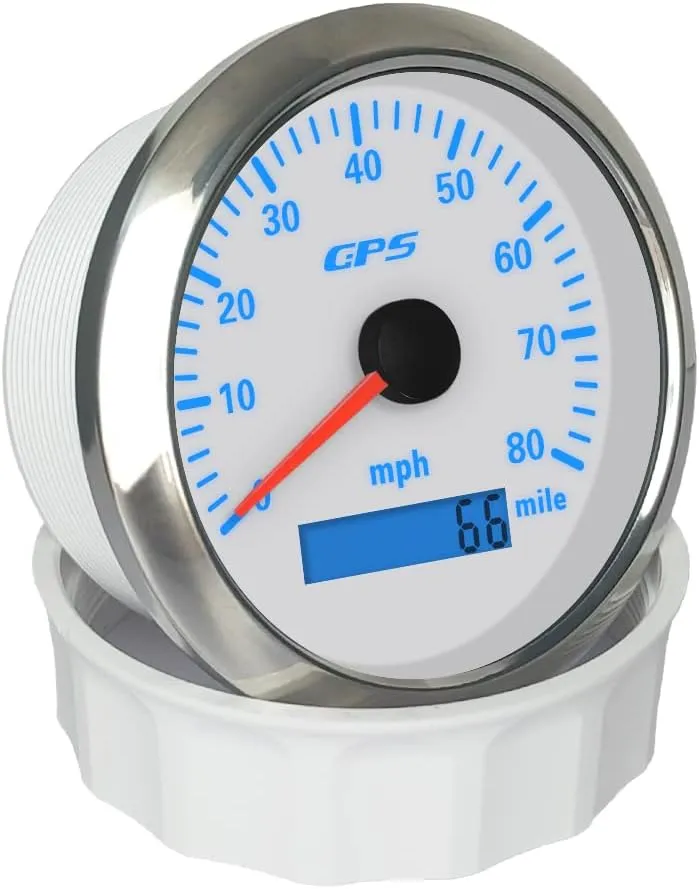

- Current speed and accumulative ODO(record the mileage after power off)

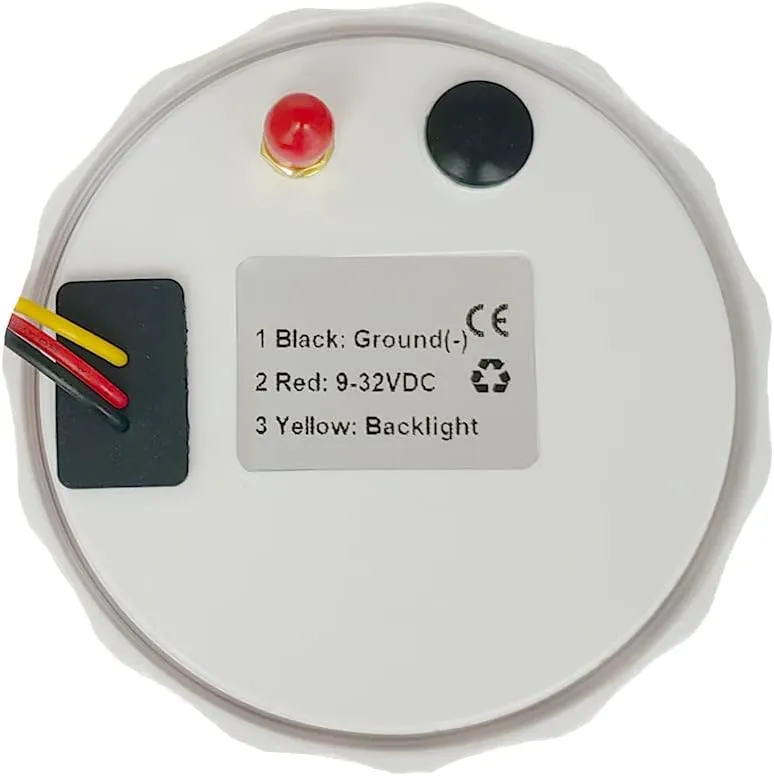

- 9-32VDC(12VDC/24VDC) Working Voltage, 100% Waterproof and anti-fogging protection
