5" screen GPS SatNav motorcycle yoke mount & direct to battery hardwire charging cable with straight mini USB connector.

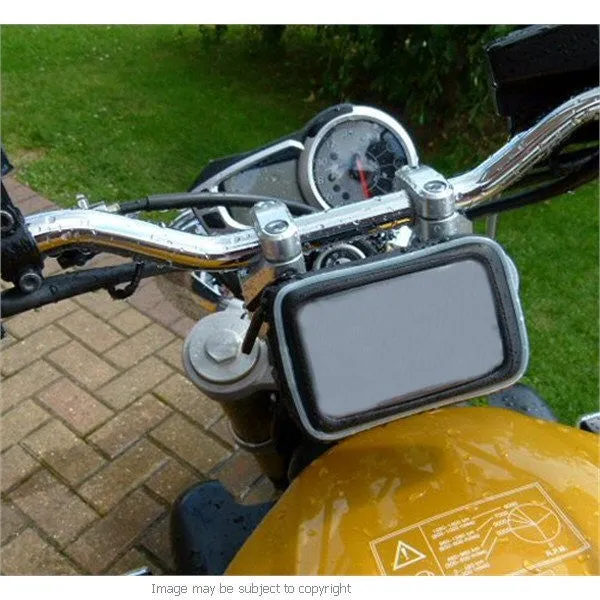

19mm motorcycle yoke / fork stem motorcycle fitting developed for use on motorcycles where a handlebar mounting option is not possible or desirable.
Designed to fit sports, superbike, endurance and touring motorbikes using the cylindrical bore wall (steering head tube) of the fork stems.
This 19mm size fits central holes 17.5mm-20.5mm (0.68 "- 0.81")
Fits GPS Satnav devices with a maximum size of 15cm x 10cm 4cm approx.
5" Screen GPS Case Features:
Offers protection from damp weather & rain showers.
Transparent touch sensitive lens which allows you to view and control your SatNav while it remains protected within the case.
Water resistant zip keeps moisture out.
Charging cable access.
Supplied with support pads to enable devices of varying sizes to be inserted as standard.
Case un-clips easily for security or storage.
Fork Stem Yoke Mount Features:
This 19mm size fits central holes 17.5mm-20.5mm (0.68 "- 0.81")
1" Ball fixing with two lug adaptor
Light weight - made from Aluminium.
Attaches easily to the steering head tube of fork stems.
Completely removable.
How does it work? Important, first check that your stem cover can be removed and leaves a central hole for the mount to fit in.
Simply drop the fork stem attachment into the hole of the stem and tighten.
Use an Allen Key to tighten to create a tight fit. The split shaft will expand to fit the inside wall of the fork stem
PLEASE NOTE: Measure your hole: This option is designed to fit stems that measure from 17.5mm-20.5mm (0.68 "- 0.81")
We also have two other sizes available: 13.3mm - 14.7mm (0.52" - 0.58") and 15mm - 17mm (0.59"-0.68") See separate listings.
Direct to Battery Hard-Wire Charging Cable Features:
Designed for motorcycle.
On / Off switch
Waterproof
Fused
LED indicator
Input Voltage: DC 12-24V
Maximum Charging Current: 1A
Output Voltage: DC 5V
Reverse Voltage Protection
Short-Circuit Protection
Overload Protection
Built in Surge Protector
Weather caps
Total Cable length - Approx 3 metres
Device plug to Connector = approx 50cm
Connector to Switch box = approx 1m
Switch box to Battery Connectors = approx 1.5m
On/Off Switch Box size - 6cm x 2.4cm x 3.9cm
Includes STRAIGHT MINI USB Charging connector.
CE Approved
12 Month Warranty
The beauty of this HardWire cable is that the power connectors are changeable.
Once the direct to battery cable has been attached to your bike the unique waterproof plug allows you to change just the charging connector to power an alternative device.
We produce and stock the following power connectors:
Straight mini USB (sku 9809)
Angled mini USB (sku 9810)
Straight micro USB (sku 9811)
Angled micro USB (sku 12739)
iPhone - for iPhone 3G/3GS/4/4S (sku 9813 or 9812)
Samsung Galaxy S2 (sku 13986)
