- Includes: Box of 12 Filters

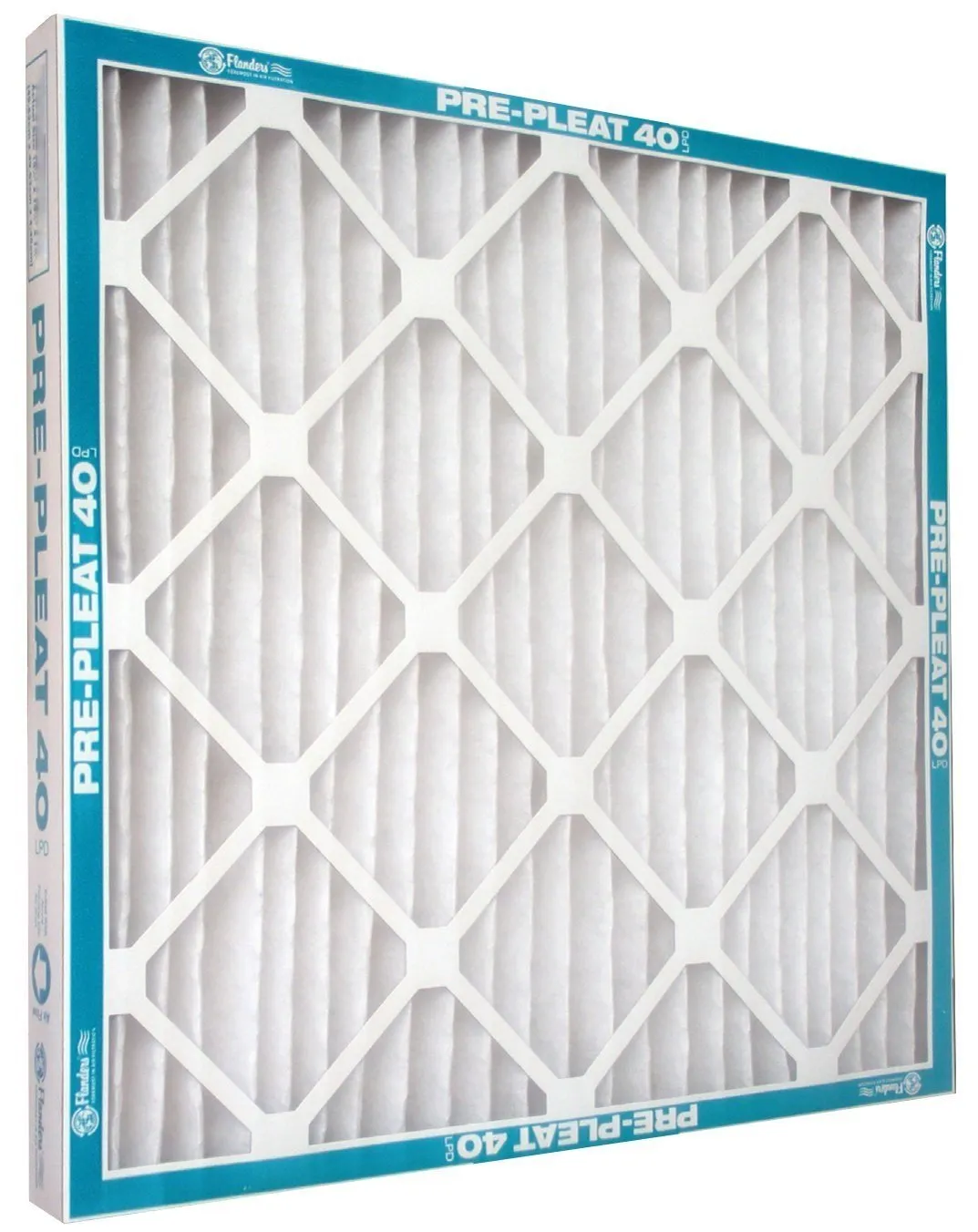

- Flanders Pre Pleat 40 LPD (Low Pressure Drop) MERV 8 Pleated Filter
- 40% Lower Pressure Drop with the Industries Highest Dust Holding Capacity
- 100% Synthetic, Non-Woven Proprietary High-Loft Media that Can Be Recycled
- Flanders Has Led the World in Filter Media Development and the Application of High Efficiency Filtration for Over 60 Years
ABOUT THE MEDIA: 100% synthetic non-woven, proprietary recyclable media. Engineered with a gradient density composition achieving MERV 8 using the mechanical method of particle capture. Media does not rely on an electrostatic charge to capture particulate which will dissipate over time and during use. -- MEDIA SUPPORT: Newly designed expanded metal is continuously laminated on the air leaving side to provide pleat stability while eliminating flutter during operation. -- PLEAT DESIGN: V-Pleat design aides in pressure drop while reducing energy cost. Design allows for total media usage and provides maximum airflow and dust holding capacity during the life of the filter. -- FRAME: Heavy-duty two piece moisture-resistant frame includes diagonal and horizontal support members bonded to the media on the air entering and leaving sides for unsurpassed frame strength. Interlocking corners and positive media-to-frame seal reduces the possibility of air-bypass. -- GENERAL INFORMATION: Air filters are designed for dust holding, pressure drop and MERV. Flanders Pre Pleat 40 LPD achieves the highest dust holding capacity and the lowest pressure drop in the industry, while maintaining a mechanical MERV 8 per ASHRAE Standard 52.2-2007. Classified UL 900 Class 2. -- INSTALLATION CONSIDERATIONS: Distinctions can be made in air filter technology. Flanders is committed to continuously developing new and improved products to assist in an environmentally responsible, healthy, and prosperous environment. The Pre Pleat 40 LPD high and standard capacity pleated panel filters are suitable as pre filters but are best suited for heavy duty commercial, industrial, pharmaceutical, as well as other industrial applications where high dust holding is required. The Pre Pleat 40 LPD can be installed in PF-1 Holding Frames, K-Trac Framing Modules, Surepleat Side Access Housings and Bag-In / Bag-Out Containment housings. -- OPERATING TEMPERATURE LIMITS: Maximum operating temperature is 180 F (82.22 C).
- Is Discontinued By Manufacturer : No
- Product Dimensions : 25 x 16.5 x 10.75 inches; 6.4 Pounds
- Date First Available : September 19, 2012
- Manufacturer : FLANDERS CORP
